Evolution of rauc-hawkbit

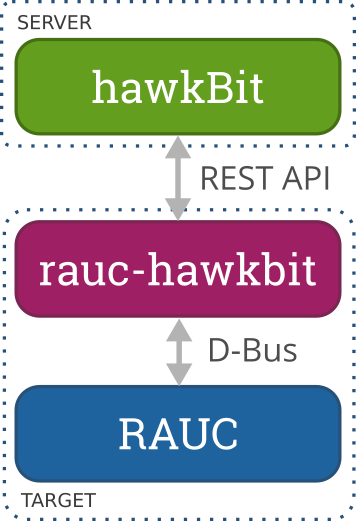

In the middle of 2016, in the context of a customer project where unattended OTA field updates with hawkBit as the deployment infrastructure were required, Pengutronix started implementing a python-based service that runs on the target and talks to RAUC on the one side via its D-Bus interface and to hawkBit on the other side over its RESTful DDI API.

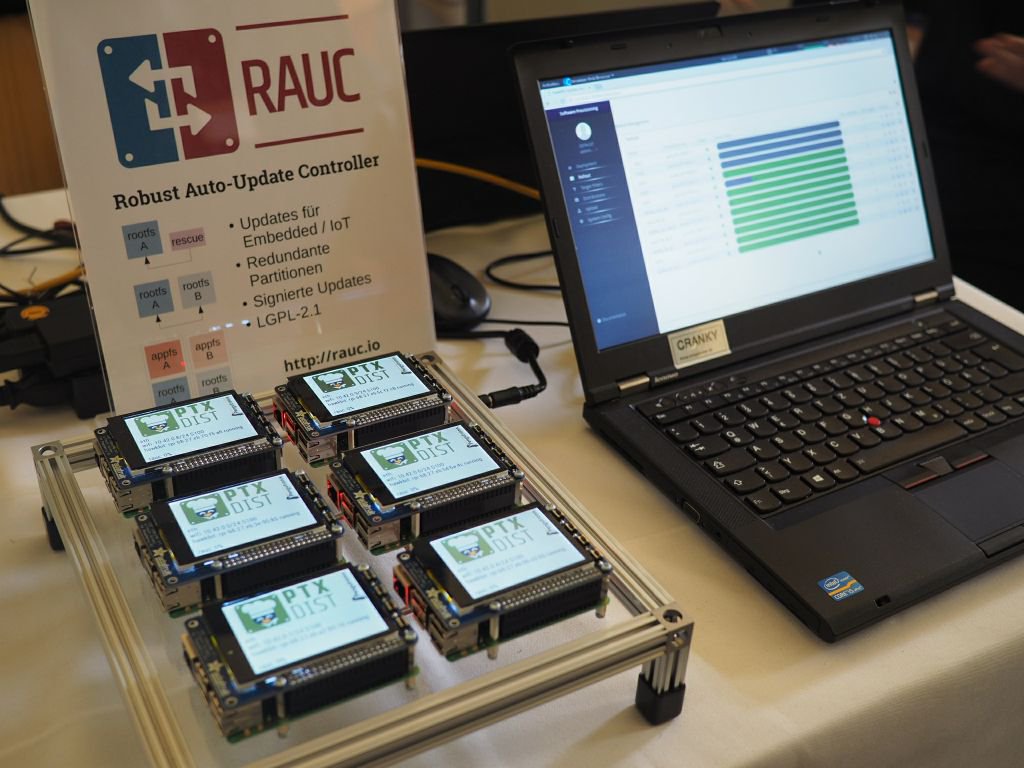

Later that year, parts of the code were reused in an internal project, a RAUC hawkBit deployment server demonstrator. We presented this at the FOSDEM in Brussels, at the Chemnitz Linux days and on the Embedded World exhibition.

Finally, in early 2017, the customer and we decided to make a reusable project out of the hawkBit client core components and provide it as open source software. The advantages that were the motivation behind doing this step are quite the same as for almost every open source project: Only this way it will have the chance to be actively maintained, used, tested and possibly improved by the community.

A few month later, after a bunch of refactoring, cleanup and testing, we now finally release the initial version (0.1.0) of this project.

See How It Works

Now, let's conclude the history lesson and start with some technical facts.

The rauc-hawkbit client uses asynchronous routines and HTTP communication abstraction provided by asyncio and aiohttp for its communication with the REST API of the hawkBit deployment server.

The communication with the D-Bus interface of RAUC is done using the corresponding glib methods from Python via the GObject introspection interface.

During its initial interaction with the server, the client identifies itself to the server and sends some meta-data that allows identification, filtering, etc. Then the client service regularly polls the deployment server for new artifacts or actions. The polling interval itself is a property set by the hawkBit server and can be adjusted to specific needs. Once hawkBit has an update available for the device, the client first downloads it and then triggers RAUC via D-Bus to install the downloaded bundle.

During installation, the client receives progress feedback from RAUC and forwards it to hawkBit, allowing the user to see the exact individual progress of each pending update. After a successful or failed update, hawkBit gets notified about the result, allowing to base roll-out strategies on this information.

Using it

rauc-hawkbit is available in the python package index (pypi) making it easy to install for testing purposes.

For those who use Yocto/OpenEmbedded as build system, the meta-rauc layer provides a rauc-hawkbit recipe and all required dependencies. You can simply add it to your image:

IMAGE_INSTALL_append = " rauc-hawkbit"

or build it directly with bitbake:

bitbake rauc-hawkbit

The rauc-hawkbit client is designed to be both an example application as well as a base library providing the required functionality for bringing RAUC and hawkBit together. For testing, you can simply use the provided executable python script rauc-hawkbit-client. If you consider actually using it in the field, you may want to integrate it into your application, web interface or something else. In that case, you can use it as a python module via import rauc_hawkbit.

To use the example command-line application, all you need is a configuration file containing some mandatory information, such as the server address, an authentication token or the name of your target:

[client]
hawkbit_server = 127.0.0.1
ssl = false
tenant_id = DEFAULT
target_name = test-target
auth_token = ahVahL1Il1shie2aj2poojeChee6ahShu
mac_address = ff:ff:ff:ff:ff:ff
bundle_download_location = /tmp/bundle.raucb
log_level = debug

To start the rauc-hawkbit client run:

rauc-hawkbit-client -c config.cfg

Note that for this example to be fully functional, you also need to have a RAUC instance running on your device and a hawkBit instance set up on your server. Refer to this page on how to quickly set up a development instance of hawkBit.
