candleLight FD - Open Hardware USB-to-CAN-FD interface

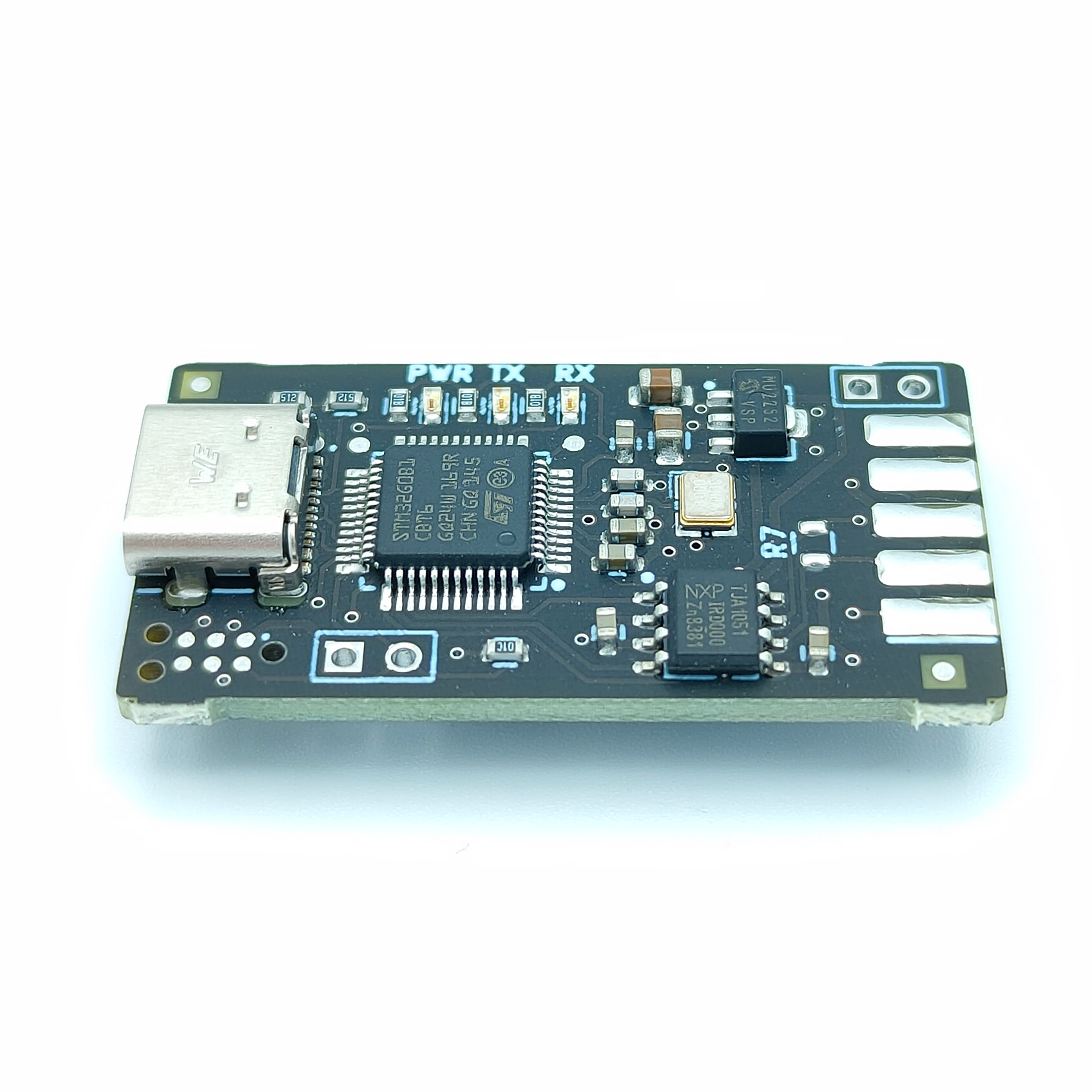

This week Linux Automation has released a CAN-FD version of the low-cost USB-to-CAN interface candleLight: the candleLight FD. And as the candleLight the candleLight FD is Open Hardware. Check the KiCad project on Github.

With CAN-FD the effective data rate and maximum packet length on the bus can be increased. CAN only supports a data rate of up to 1MBit/s for the frame's header and data part. With CAN-FD the data part of the frame can be send with a higher data rate. While the maximum duration of the frame stays the same, more data is transmitted.

Don't know what to do with a candleLight FD? Marc has written a blog post about candump, cansend and similar tools. And Leonard made a video where he demonstrates how to reverse-engineer a CAN-based protocol using the candleLight and Wireshark.

What's new

To be honest: compared to HubertD's candleLight not that much has changed. The candleLight already checks all boxes. So Linux Automation only made slight changes. Here is what's actually new:

  • It now uses a ST STM32G0B1CBT CPU. This is an entry-level microcontroller with USB and CAN-FD.
  • The Micro-USB socket has been swapped for an USB-C socket.

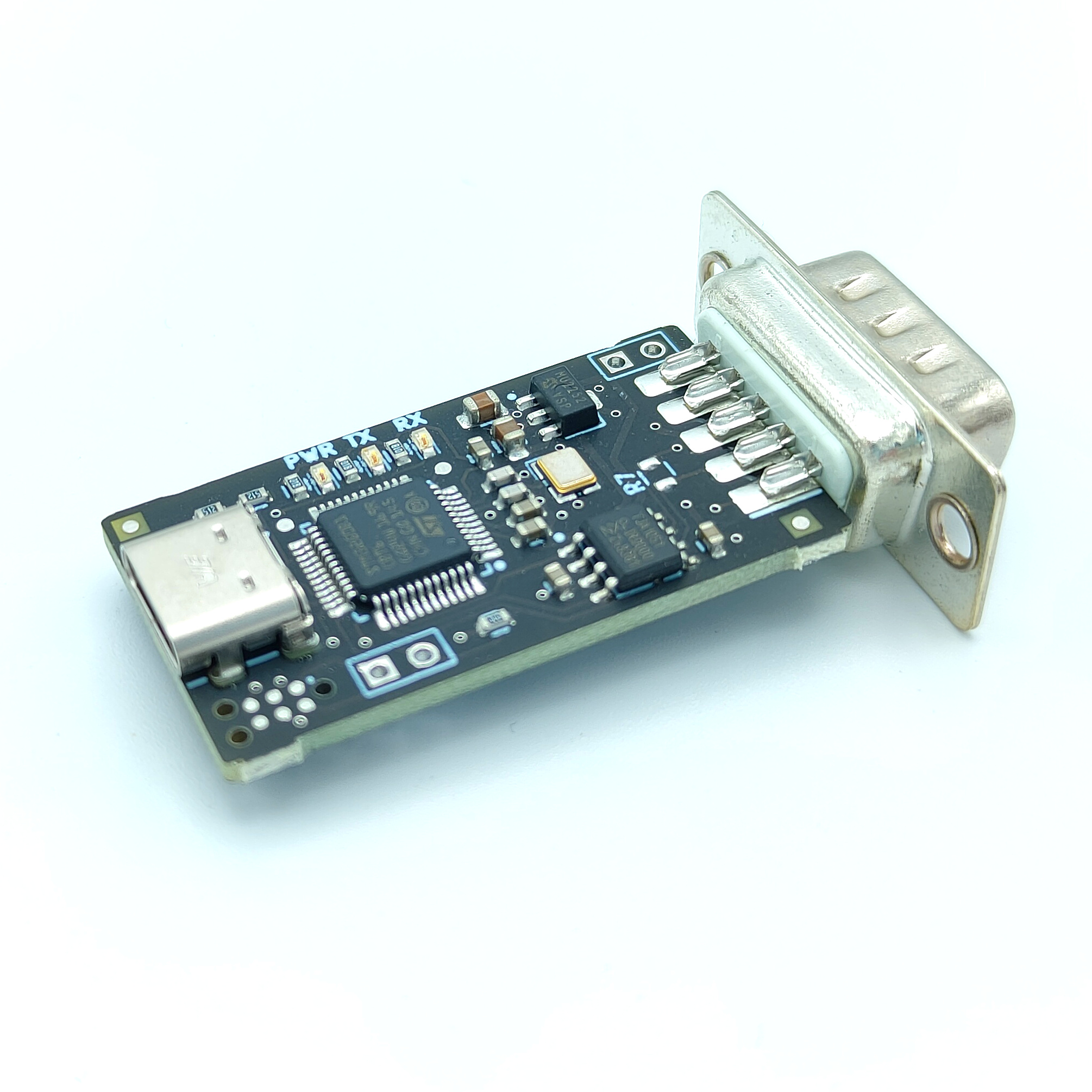

  • The candleLight FD has two pins which allow connecting the +12V pin on the D-SUB9 connector. This way, devices on the CAN-Bus can be supplied without the need for a separate injector - if soldering cables to your CAN interface is OK for you.

Interestingly, the CAN transceiver on the candleLight is already CAN-FD capable. Thus in the candleLightFD we still use the NXP TJA1051T3.

Software

The gs_usb driver got support for CAN-FD back in 5.18. So on any Linux system with a somewhat recent kernel, the CAN-FD on the candleLight FD will work out-of-the-box. After connecting your candleLight FD via USB a new device will appear:

[72781.472163] usb 5-1: new full-speed USB device number 5 using xhci_hcd
[72781.645516] usb 5-1: New USB device found, idVendor=1d50, idProduct=606f, bcdDevice= 0.00
[72781.645522] usb 5-1: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[72781.645524] usb 5-1: Product: candleLightFD gs_usb
[72781.645526] usb 5-1: Manufacturer: candleLightFD
[72781.645527] usb 5-1: SerialNumber: 003400205841500B20373233
[72781.656517] gs_usb 5-1:1.0: Configuring for 1 interfaces

Additionally a can0 network device will appear. This can be configured using ip:

$ ip link set can0 up type can bitrate 200000 dbitrate 2000000 fd on

This will enable CAN-FD mode, set a data part speed of 2MBit/s and bring the device up. Other parameters like sampling point, sjw, dswj and so forth will be set to (hopefully) sane defaults. (Note: When combining CAN interfaces with different base clocks or CAN cores these values sometimes need additional tweaking.)

Alternatively, with systemd we can use systemd-networkd to bring up the CAN interface after it appeared. For example:

$ cat /etc/systemd/network/90-candlelight.network
[Match]
Property=ID_VENDOR_ID=1d50 ID_MODEL_ID=606f

[CAN]
BitRate=200000
DataBitRate=2000000
FDMode=True
RestartSec=100ms

Take a look at the systemd network [CAN] section documentation for more details on what can be configured here. For classical CAN we already took a deep dive into systemd-networkd and CAN in this blog post.
