How it works

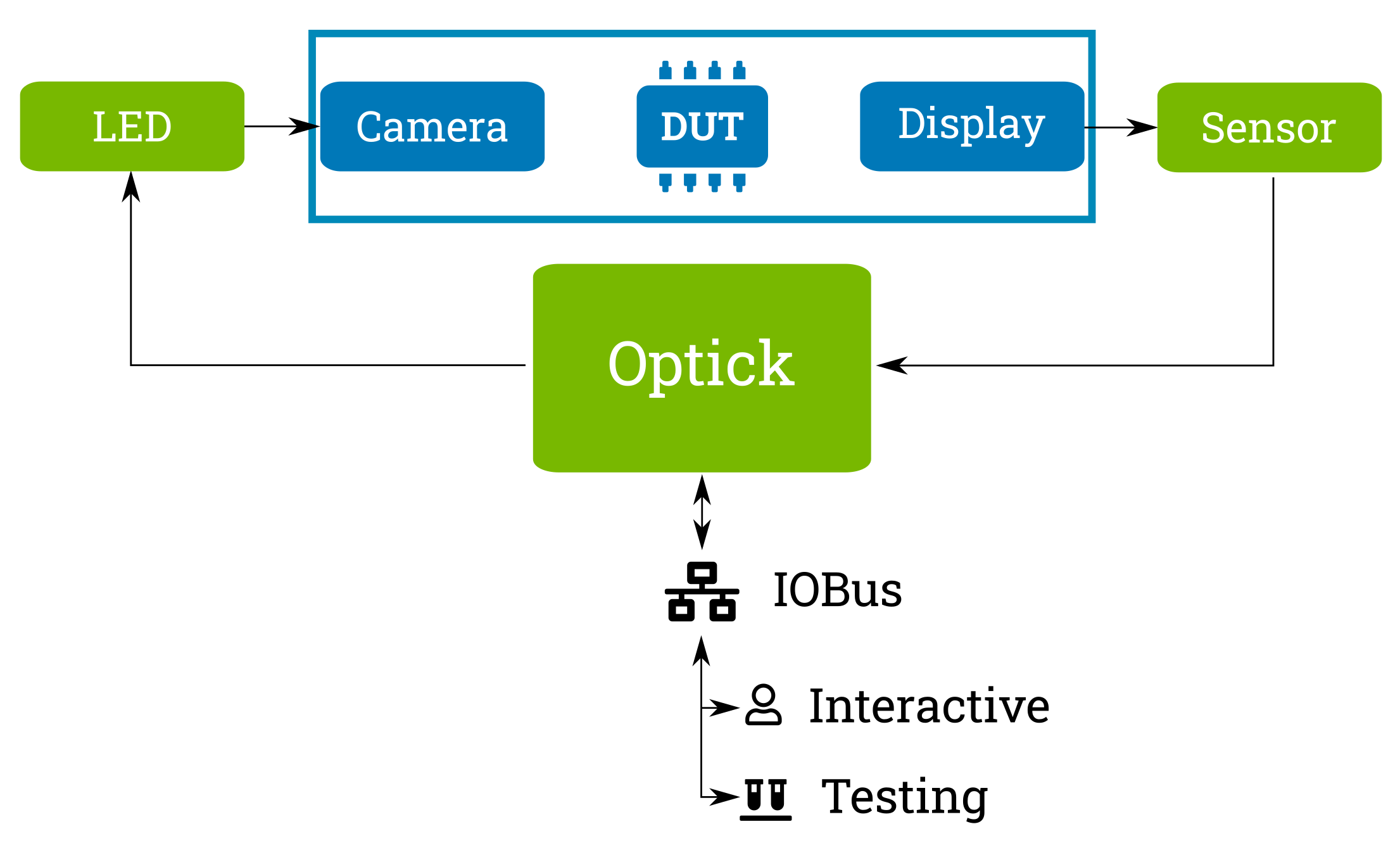

The following diagram shows how a measurement with the Optick works. An LED assembly is placed in front of the camera. The DUT captures the video from the camera and does all it's video-processing-magic until the video is displayed on the DUT's display. In front of the display a photo-sensor assembly captures the brightness of the screen. The timing of the LED is precisely controlled by the microcontroller on the Optick. Capture of the rising and falling edges of the sensor signal is done with the same timebase. Thus the relative time between the two events can be captured with the precision of the on-board oscillator.

The Optick also features a second capture channel that can either be used to capture a second glass-to-glass latency. For example one could be placed at the top and one at the bottom of the screen to detect tearing. But this channel can also be used to capture the PPS output of a GPS receiver module - just in case one will ever need an even better timing reference.

To accommodate for displays with different brightness the threshold of the sensor can be fine tuned in software.

The Optick is powered and controlled via IOBus. IOBus is an CANOpen-inspired protocol on top of CAN that allows reliable communication. Thanks to CAN as transport the bus system is very reliable - even in installations where USB bus-sizes start to cause massive headaches.

LEDs and Sensors

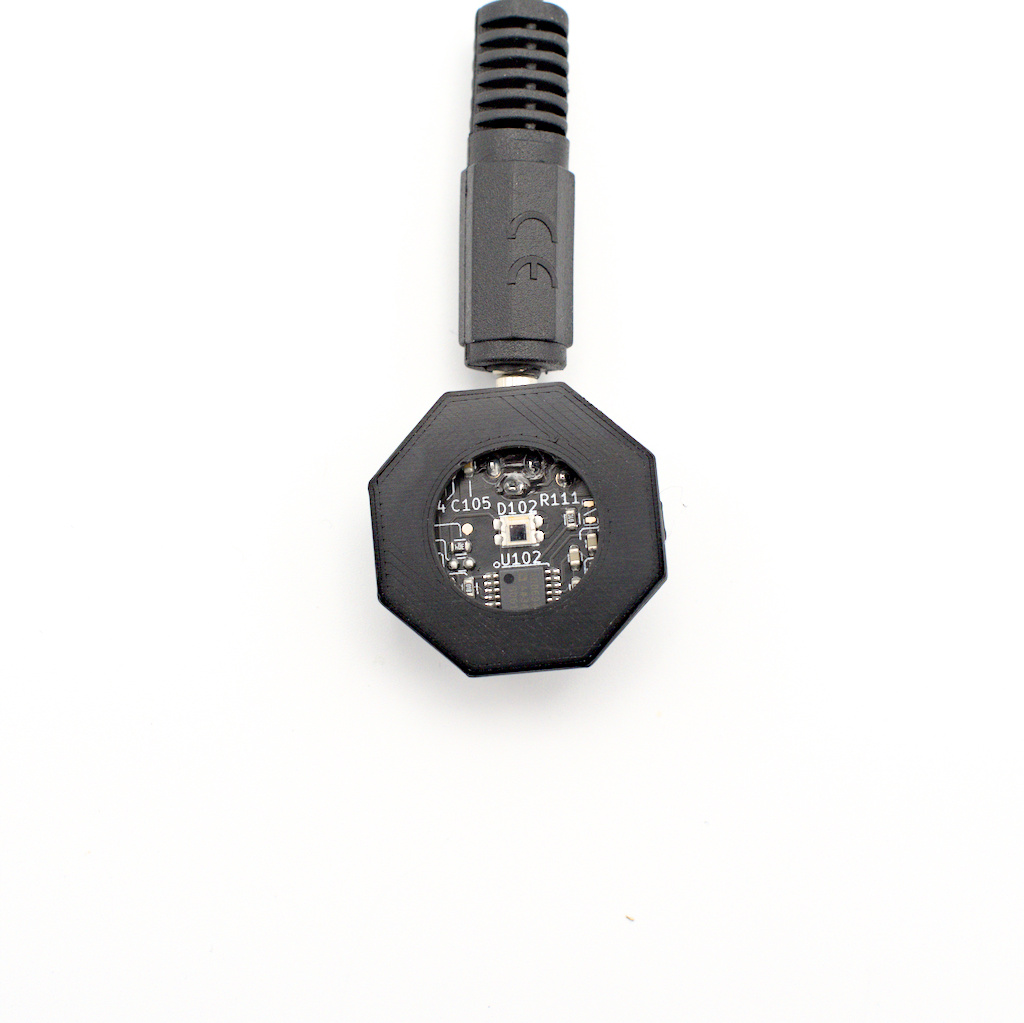

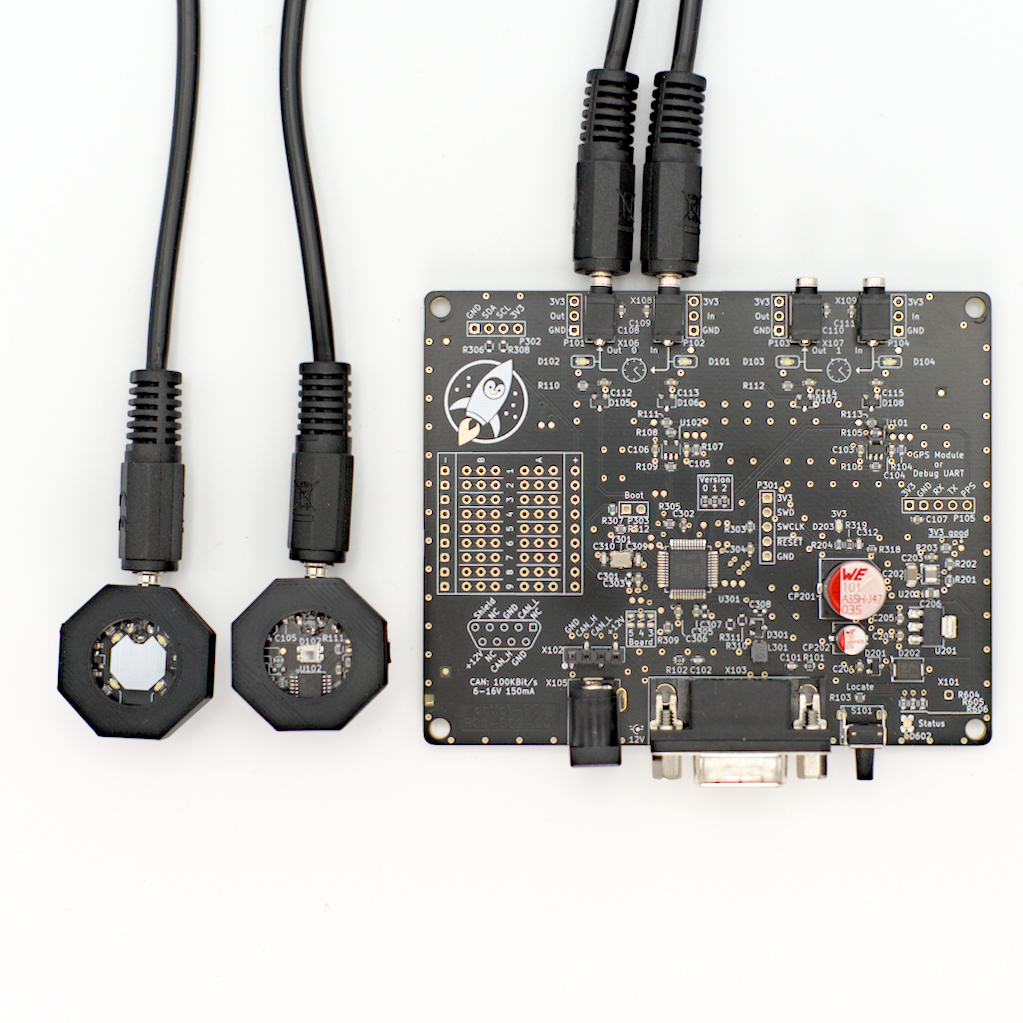

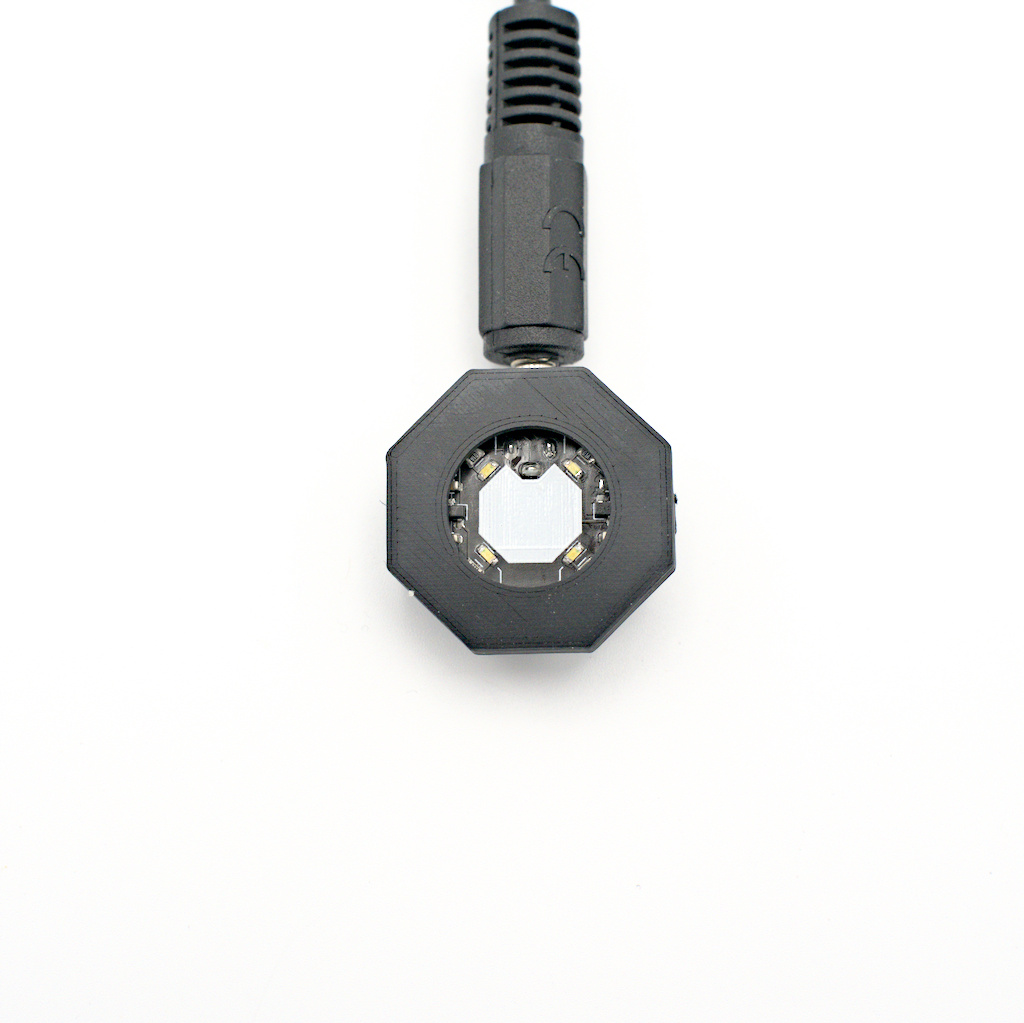

The LED and sensor assembly are connected via standard and low-cost 2.5mm audio cables. These tiny modules come with a 3D-printed housing that allows us to directly duct-tape them onto the camera and screen.

Giving it a try

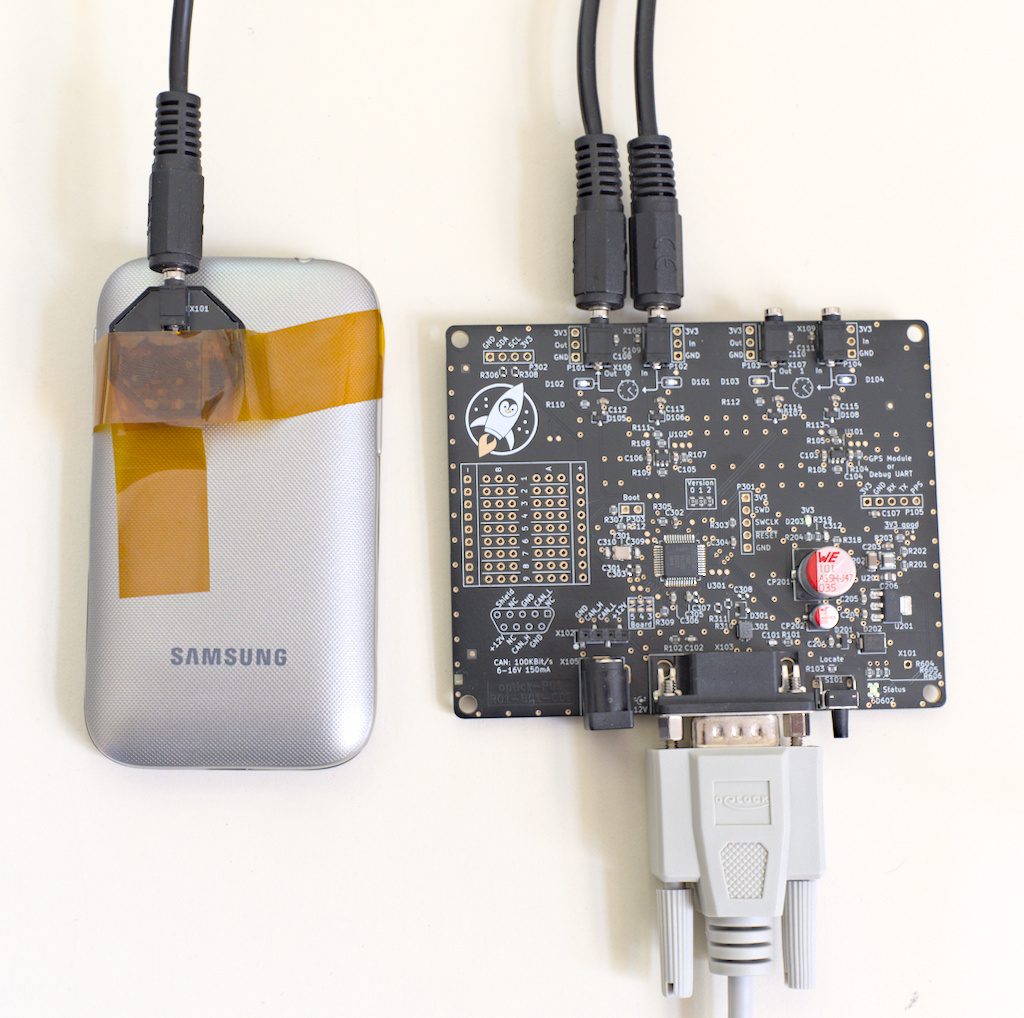

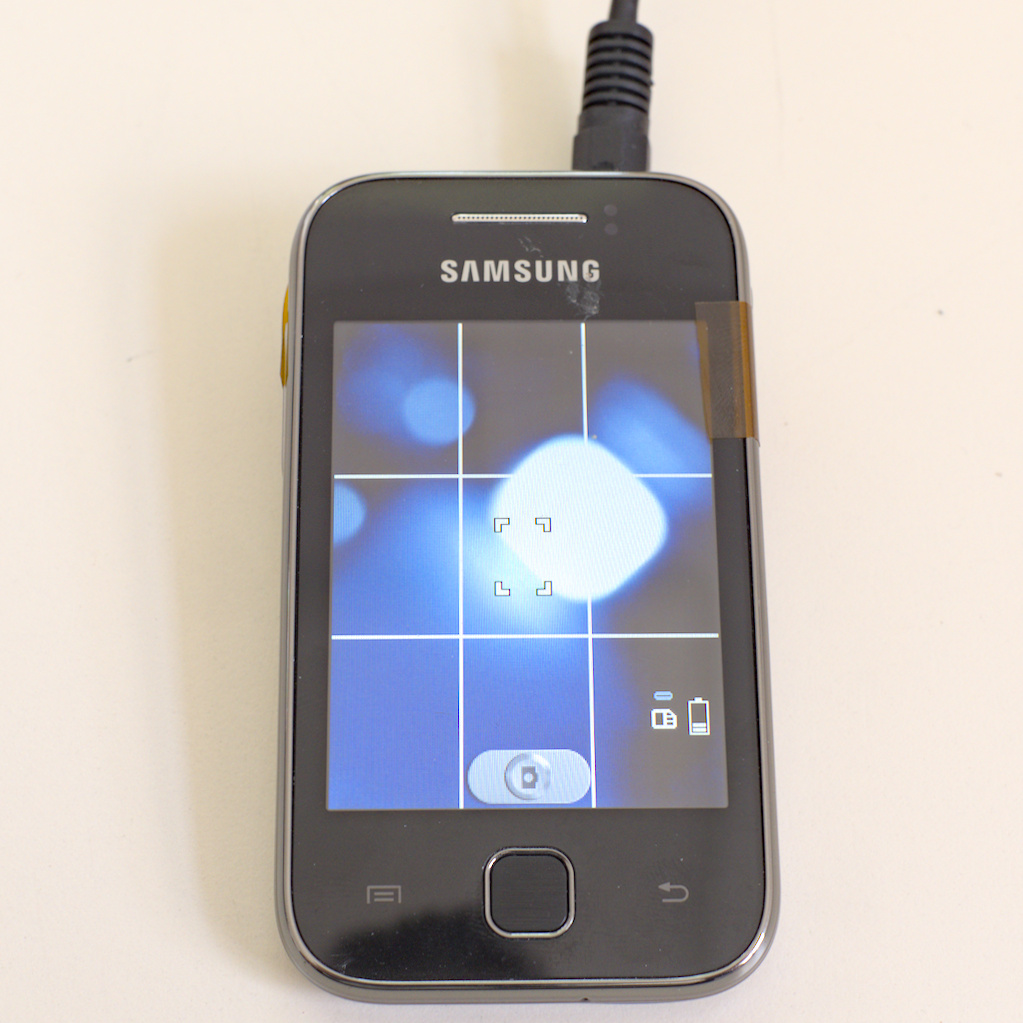

For demonstration we will measure the glass-to-glass latency of an ancient smartphone. First: The LED assembly is taped onto the camera on the back. Make sure that one of the LEDs illuminates the tiny aperture of the camera. This way we will get a bright blob on the screen when the LED is switched on.

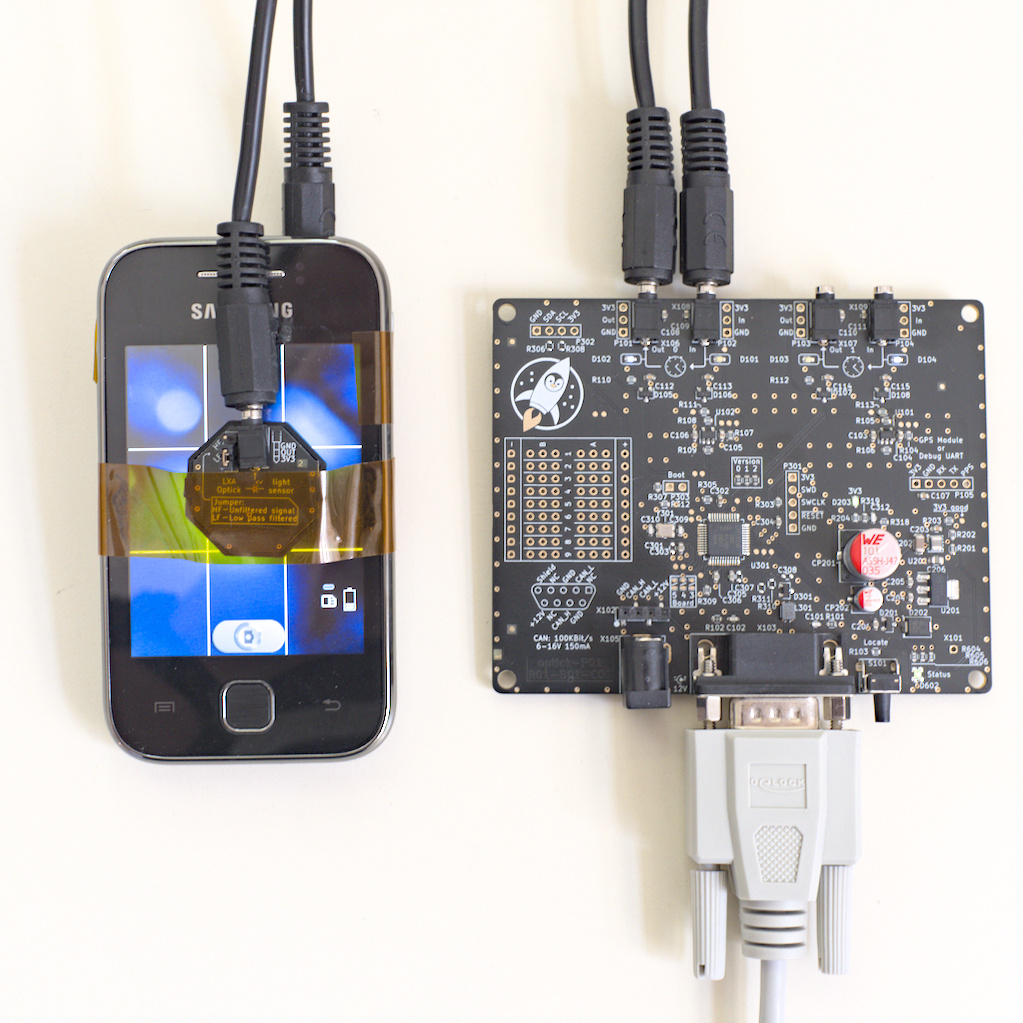

Next, we need to place the sensor assembly on the screen. Again, some Kapton tape will secure it in place.

Since the signal amplitude on the sensor depends on the screen's brightness, we need to run a calibration step first. This yields a threshold, that we can later use to capture measurements:

chris@defiant$ optick calibrate --changeover-delay 1  --output 0 Optick-00043.00001 0

Trigger level 0.24 provides:
  - 100% correct low estimates
  - 100% correct high estimates

Using a trigger level of 0.24 we can now capture a first measurement:

chris@defiant$ optick latency --trigger-level 0.24 --iterations 1 Optick-00043.00001 0 0
Timestamp (ns),Output State,Input State
0,0,0
500000000,1,0
668088166,1,1
1000000000,0,1
1235854375,0,0

To create a histogram of the actual latency we first need to take more samples and store them in a file:

chris@defiant$ optick latency --trigger-level 0.24 --iterations 100 Optick-00043.00001 0 0 > phone.csv

The Optick tool can create a histogram from these measurements. But we will need to take care of plotting ourself:

chris@defiant$ optick histogram --bin-size 0.02 csv
Bin start(s),Bin end(s),rise -> rise,fall -> fall,rise -> fall,fall -> rise
0.0,0.02,0,0,0,0
0.02,0.04,0,0,0,0
0.04,0.06,0,0,0,0
0.06,0.08,0,0,0,0
0.08,0.1,0,0,0,0
0.1,0.12,0,0,0,0
0.12,0.14,0,0,0,0
0.14,0.16,40,0,0,0
0.16,0.18,32,0,0,0
0.18,0.2,27,29,0,0
0.2,0.22,1,17,0,0
0.22,0.24,0,51,0,0
0.24,0.26,0,0,0,0
0.26,0.28,0,1,0,0
0.28,0.3,0,1,0,0

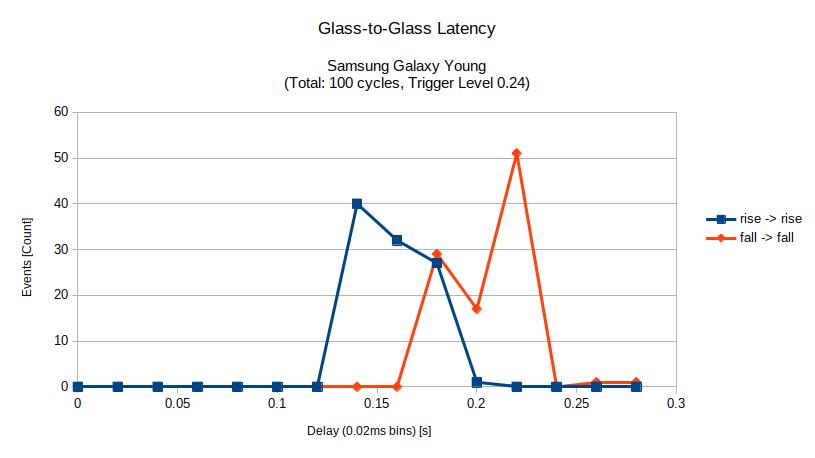

Using everyone's least favorite plotting tool LibreOffice we quickly get some diagram showing the distribution of latencies:

Where to get it

The Optick was, or rather is being, developed to suite our Pengutronix-internal needs, but we think it may also suite your needs, this is why we decided to add it to our webshop in its current, slightly prototype-y, state.

Do you want to perform glass-to-glass latency measurements, as shown above? Do you want to make other latency or timing measurements that can be performed with two outputs and two inputs and a resolution of about 21 ns?

Then feel free to contact us about it or head straight to the Linux Automation's web shop.
