The IOBus protocol

Why build a custom protocol when USB, Ethernet, Modbus and 1-Wire are already available?

• USB - Our Remotelabs are equipped to connect up to 40 USB devices per rack. Multiplying that by about eight full-scale Remotelabs currently in use at Pengutronix means that we encounter even the rarest USB-related issues quite regularly. This more often than not means losing contact to to all devices connected to hub until it is manually power-cycled. This quickly became a major time-sink and annoyance to our developers.

  Don't get us wrong, we still like USB, whenever its high bandwidth capabilities are required. We also continue to develop new products using USB, some of which even speak USB on all of their ports. But that is a story for another time.

• Modbus - Modbus is widely used in industrial automation and there is a selection of reasonably priced products from different manufacturers. We did however not want to commit to it as a protocol for our own hardware developments due to it's limited bandwidth and dated protocol.

• Ethernet - Ethernet requires point-to-point connections between devices using rather clunky cabling, making it unwieldy when used for all devices in our Remotelabs. There is also additional software complexity required to implement the different protocol layers from Ethernet to TCP. We are keeping an eye out for possible solutions to these issues, like 10Base-T1S and CoAP, but it will take some time until they can be widely used.

• 1-Wire - 1-Wire was our protocol of choice before we started developing the LXA IOBus. The proprietary nature of the protocol coupled with the few off-the-shelf tools did however lead to lots of hours spent debugging the setups. The low maximum datarate is also a limiting factor when designing new products.

The lessons learned from our experience with the protocols above led use to choosing a CAN-based protocol for our future lab automation products. More specifically we decided to base the LXA IOBus on CANopen, a device-abstraction layer on top of CAN.

CAN and CANopen have a couple of benefits:

• Rock solid - CAN was designed with safety-critical systems, like cars, in mind. While LXA IOBus devices are not used in safety-critical environments (please don't) this is still a big plus for us. Automatic retransmits at the hardware layer and the automatic disabling of misbehaving nodes means that a single broken device or intermittent failure does not break the whole bus.
• Tooling - CAN is a first-class citizen in the Linux Kernel and there is a large ecosystem around it. You can use Wireshark to debug CAN buses and can even unpack CANopen with it. There is also software to send and receive CAN packets included in most major distributions.
• Multi-drop cabling - CAN, at low datarates, is very forgiving when it comes to cabling. A complete Remotelab can be wired using ribbon- and off-the-shelf D-Sub 9 cables without requiring any hubs or switches. We use a single D-Sub 9 connector to supply data and power to the device.
• Automatic discovery - CANopen allows hot-plugging and the automatic configuration of connected devices.

Please note that our LXA IOBus devices uses vendor-specific CANopen device profiles, so integrating them into your elevator infrastructure or garbage truck electronics may require some extra effort (feel free to contact as if you want to go that route though, we would like to know).

IOBus Server

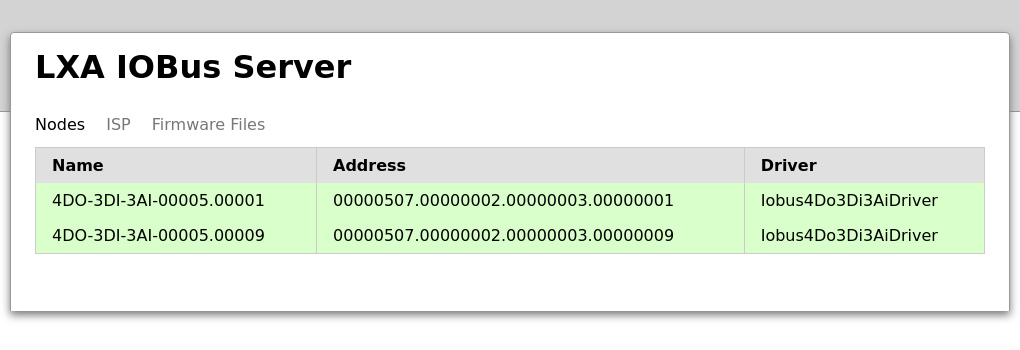

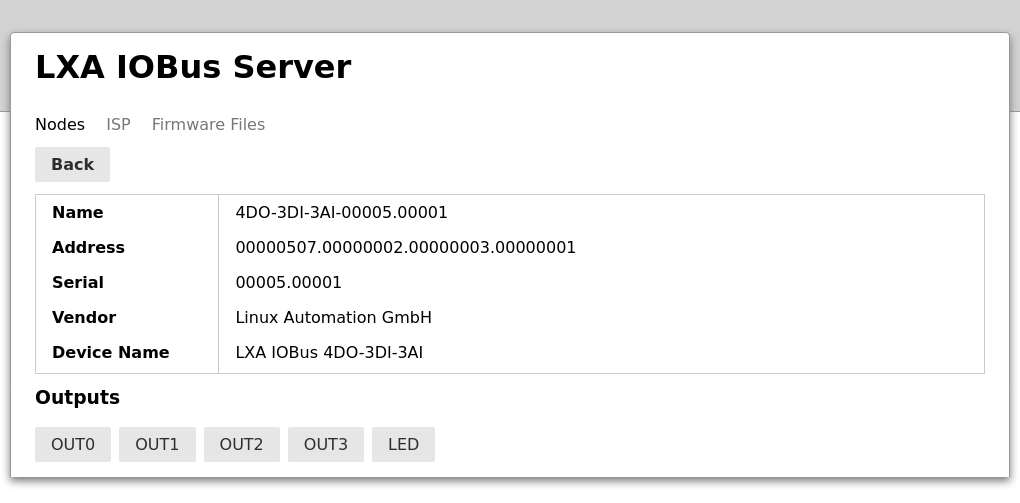

The IOBus Server is the gateway between the IOBus and you. On one side it uses the Linux SocketCAN interface to communicate with devices on the CAN bus, on the other side it provides a HTTP-Server with an interactive web interface and scriptable REST-API.

The IOBus Server is, and always will be, open source and is well integrated into the Labgrid lab automation framework.

Ethernet-Mux

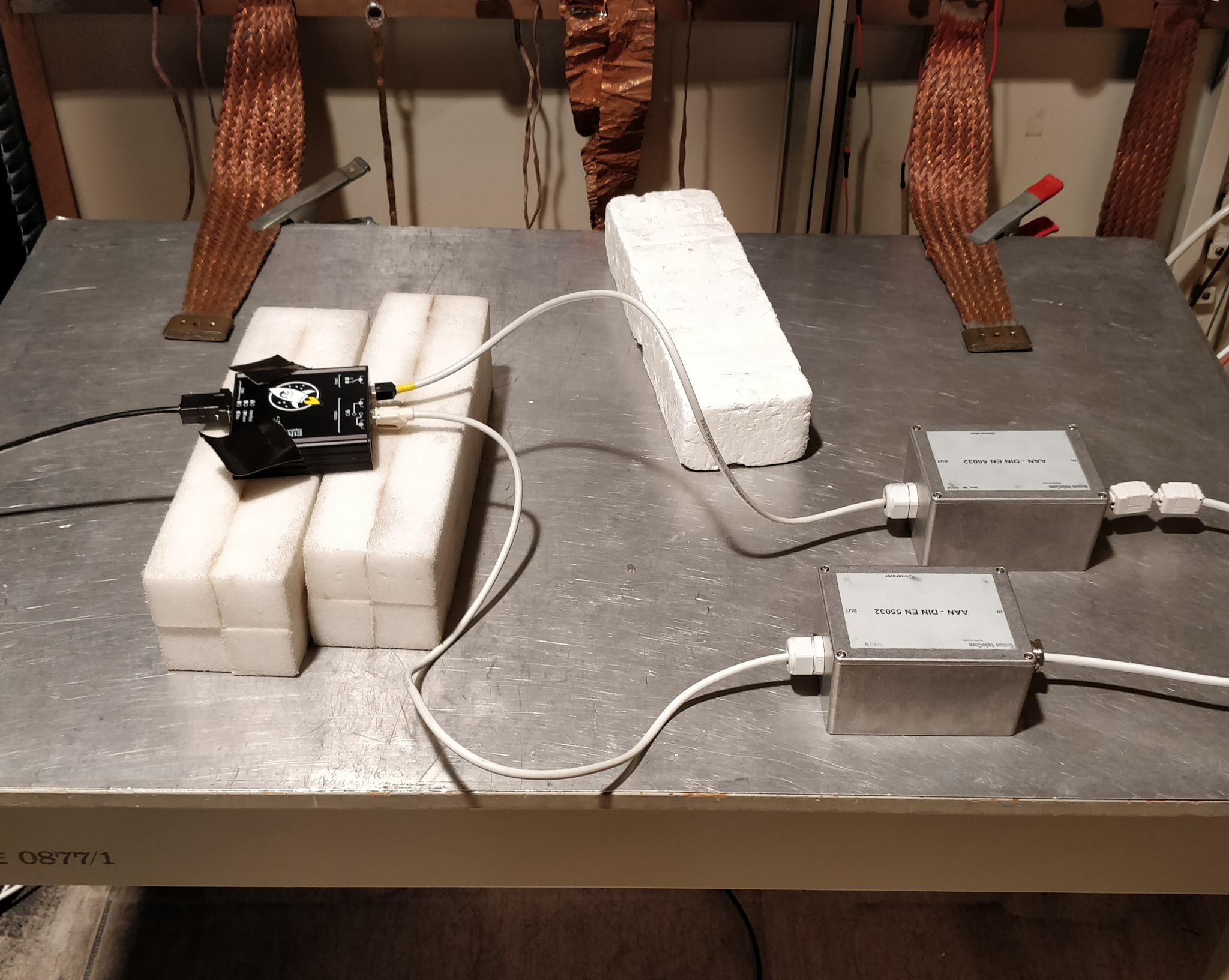

The Ethernet-Mux allows the multiplexing of two upstream Ethernet ports to one downstream port (or vice versa). The connections are made using high-speed analog switches, allowing you to use Ethernet at speeds up to 1000Base-T without the added latency that would for example be added by a network-level Ethernet switch.

An example use case is a DUT that should be tested as part of a larger infrastructure, but should also be able to connect to another network for software deployment or remote access.

4DO-3DI-3AI

The LXA IOBus 4DO-3DI-3AI is our first device to break the cycle of LXA (Linux Automation GmbH) devices called Something-Something-Mux, even though it could be used as a GPIO-Mux. But let's not get into that.

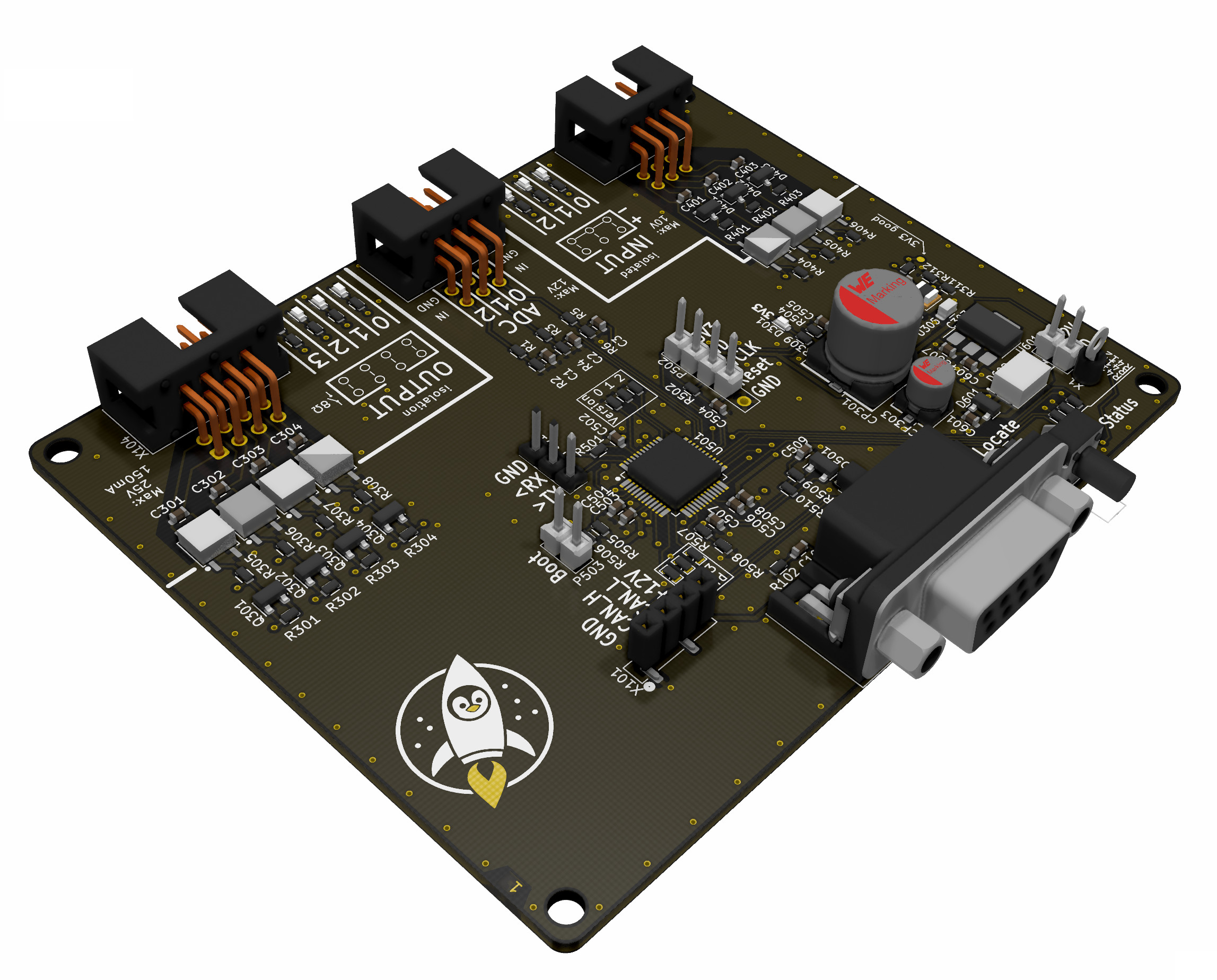

The 4DO-3DI-3AI provides four digital outputs, three digital inputs and three analog inputs. The digital inputs and outputs are galvanically isolated and implemented as solid state relays, allowing a lot of flexibility in their use. The analog inputs are not isolated but can be used to measure voltages up to 12V, allowing you to measure most supply rails of an embedded device.

The major use case for the 4DO-3DI-3AI is to programmatically bridge jumper connections like boot mode selectors or reset pins, but it can also be used to simulate button presses by soldering connections to said button.

The inputs can be used as a feedback source in automatic tests to determine if a specific test ran successfully.
